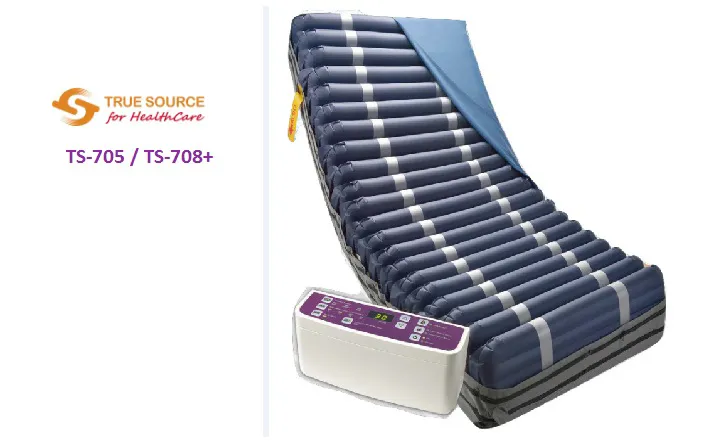

TS-705 / TS-708+ Advanced Digital Alternating Air Mattress & Pump System

Patented innovated R&D design, pressure value display instantly as user lying on the mattress
Double cell chamber design provides alternating function on top and static on lower cells with integrated foam layer for stability and comfort
8” 21pcs air cells with static base and integrated foam base that brings user more comfort and security
Built-in pressure detector and feedback system provides 24/7 air pressure monitoring
Compressor activates when needed, expand lifetime and power saving.

Technical Specification:

*Advanced Digital Alternating Air Mattress & Pump System*
Control Unit	Input Power	AC 110V/60Hz or AC220-240V/50Hz
	Power Consumption	10W max.
	Dimensions	L26 x W8 x H13cm
	Weight	Approx. 1.5 kgs
	Air Flow Rate	Approx. 8LPM
	Appliance Category	Class I. Type BF
	Certification	CE, EN60601-1, EN60601-1-2, *IEC 60601-1 Edition 3.1* FCC 47 CFR PART 18
	Model	TS-705 5" Overlay	TS-708+ 8" Replacement
Air Mattress	No. of Cells	5" 21 cells	8" 21 cells
	Dimensions	L200 x W85 x H13cm	L200 x W90 x H25cm
	Weight	Approx. 4.2kgs	Approx. 11kgs
	Cell Materials	Nylon / TPU	Nylon / TPU
	Cover Materials	Polyester / PU	Polyester / PU
	Weight Capacity	30-150 kgs	30-200 kgs
	Emergency	CPR Valve for rapid deflation
	Static Head Cells	Provides stability under the head/neck and reduce sleep disturbance

8" Replacement: 8" air mattress integrated with a 5cm foam mattress, including a dust-proof carry bag for storage.

Functionality

Alternating function offers 5, 10, 15, 20 minutes cycle time to choose from
Comfort Setting provides option as Soft, Medium, Firm and allows to Increase/decrease pressure value to get optimal comfort setting for users.
Visual and Audible safety alarm system, designed to auto detect and alert to caregiver in case of abnormal power failure or low pressure
Nursing / Auto Firm Mode provides maximum inflate to assist user in transport or other nursing procedures. The Max. inflate function will be auto canceled after 30 minutes and return to last setting selected.
Panel Lock can locks out all button functions to prevent accidentally changes , except for Nursing/ Auto Firm Mode. Press the button again to unlock.
Static Mode allows increasing pressure value while users in a seat position
