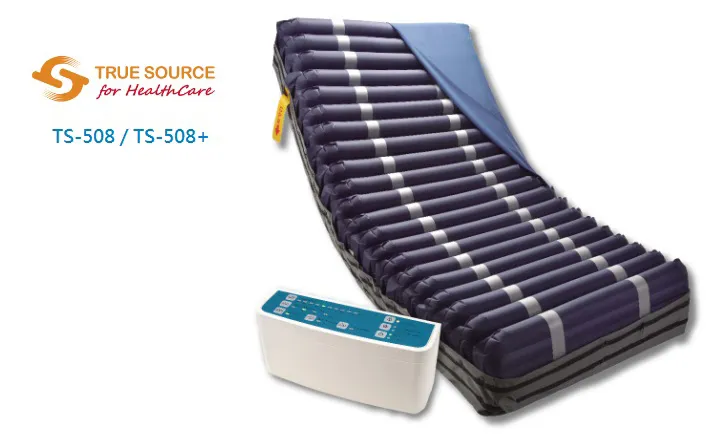

TS-508 / TS-508+Advanced Digital Alternating Air Mattress & Pump System

The most compact size unit with streamline and lightweight body of Advanced Digital Alternating Air Mattress & Pump System:

Patented internal mechanism is featured with low vibration, low noise, low power consumption which provide dignified care for users
Air cells are made of durable, deformation-free and lightweight materials that can withstand over 300mmHg
ABS with V-0fire-classification Material: Strict quality control of the injection material eliminates use of recycled materials or materials not fulfilling ABS criteria, ensuring absolute isolation and fire protection
Double cell chamber design optimizes user safety and comfort, it aims to protecting the users from “bottoming out”

Technical Specification:

*Advanced Digital Alternating Air Mattress & Pump System*
Control Unit	Input Power	AC 110V/60Hz or AC220-240V/50Hz
	Power Consumption	10W max.
	Dimensions	L26 x W8 x H13cm
	Weight	Approx. 1.5 kgs
	Air Flow Rate	Approx. 8LPM
	Appliance Category	Class I. Type BF
	Certification	CE, EN60601-1, EN60601-1-2, *IEC 60601-1 Edition 3.1* FCC 47 CFR PART 18
	Model	TS-508 8" Overlay	TS-508+ 8" Replacement
Air Mattress	No. of Cells	8" 21 cells	8" 21 cells
	Dimensions	L200 x W90 x H20cm	L200 x W90 x H25cm
	Weight	Approx. 9kgs	Approx. 11kgs
	Cell Materials	Nylon / TPU	Nylon / TPU
	Cover Materials	Polyester / PU	Polyester / PU
	Weight Capacity	30-150 kgs	30-200 kgs
	Emergency	CPR Valve for rapid deflation
	Static Head Cells	Provides stability under the head/neck and reduce sleep disturbance

8" Replacement: 8" air cells integrated with a 5cm foam mattress, including a dust-proof carry bag for storage.

Functionality:

Alternating function offers 5, 10, 15, 20 minutes cycle time to choose from
Visual and Audible safety alarm system, designed to auto detect and alert to caregiver in case of abnormal power failure or low pressure
Nursing / Auto Firm Mode provides maximum inflate to assist user in transport or other nursing procedures. The Max. inflate function will be auto canceled after 30 minutes and return to last setting selected.
Panel Lock can locks out all button functions to prevent accidentally changes , except for Nursing/ Auto Firm Mode. Press the button again to unlock
Auto Dual Mode, the function enables Alternating and Static Modes to rotate Every one hour.
